CNC Vertical Machining Center

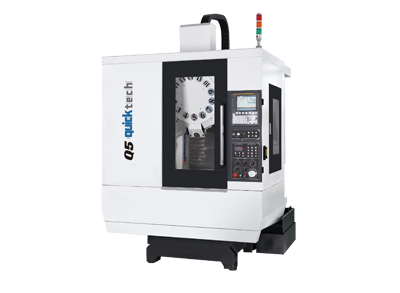

Q5

TAPPING DRILLING MACHINING CENTERS

  • Designed for drilling and tapping more holes on workpieces, such as 3C parts, hardware, molds, automotive parts and graphite.
  • Highlight:

  • Base and column are designed with great span between slideways for maximum stability.
  • 48 meters rapid traverse on three axes greatly reduces machining time.
  • Increased height of column has sufficient space to mount the 4th and 5th axes.

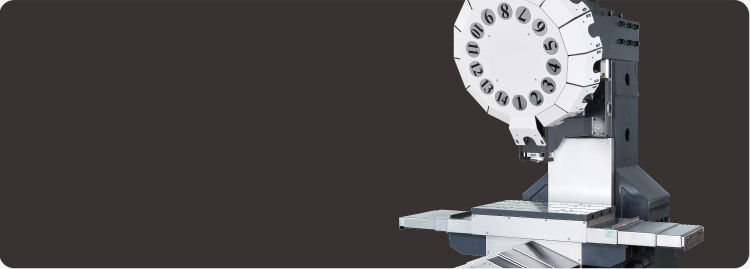

  • High speed servo drive tool change system is fast and stable that reduces non-cutting time.
  • Rear chip removing design features excellent chip removing angle and large flow chip flushing system.

Specification



Mitsubishi Controller M80
Travel X-axis travel 500 mm Table Table size (mm) 620x420
Y-axis travel 400 mm T-slot (W×No.×Pitch) 18x3x125 mm
Z-axis travel 300 mm Table loading capacity 250 kg
Spindle Spindle nose to table 200~500 mm ATC Tool selection method Disc type
Type of spindle BT-30 No. of tools 14 pcs
Spindle transmission Belt Drive Max. tool weight 3 kgs
Spindle R.P.M. 10,000 rpm Coolant system
and power
Coolant tank capacity 200 L
Spindle motor 5.5 kw Air pressure 6 kg
Feedrafe X/Y/Z rapid traverse 48 / 48 / 48 M/min Power requirement 10 KVA
Three axes ball screws (mm) ø32 / P16 / C3
Three axes linear guide(P class) X, Y-axis linear guide:
ball type 30 mm x 4 blocks
Z-axis linear guide:
ball type 35mm x 4 blocks
Machine size machine size (LxWxH) (mm) 1600X2100X2900
Three axes transmission method Direct drive Max. machine weight 2800 kg
Cutting feed rate 1~10,000 mm/min
