CNC Turret lathe

T8 Twin / Classical

Twin / Classical

This new series offers the best conditions for challenging turning or milling operation and is designed primarily for heavy duty turning/milling operation with great mass production efficiency.

The T8 series offers three combinations for varieties of mass production given better access to the turret and 8” or 10 “ chuck and also efficient chip removal.

Twin spindle

Twin spindle

This series packed with sub spindle and BMT turret with 12 stations which can be additionally equipped with driven tools on six stations. In connection with the driven tools, the main spindle is C-axis functional for accurate positioning.

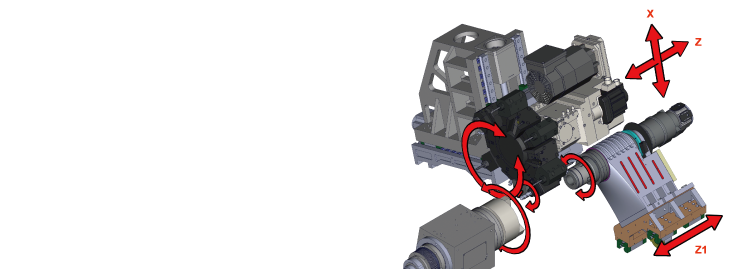

T8_TWIN AXIS

T8_TWIN AXIS

The T8 series offers ditterent combinations for varieties of mass production given better access to the turret and 8” or 10 “ chuck and also efficient chip removal.

LINEAR GUIDEWAYS

LINEAR GUIDEWAYS

The guide ways are rectangular box section to maintain rigidity in prolonged operation. This high rigidity structure ensures high machine dynamics and superior machining accuracy.

Furthermore, all the axes equipped with 32mm diameter C5 class high precision ball screw, mounted with double ballscrew support bearing ( P4 class), assures high positioning accuracy and backlash free transmission.

Classical

Classical

The standard slant-bed machine packed with servo turret with 12 stations and programming tailstock.

It offers the great cost-performance for efficient turning operations for chuck parts.

Specification



Machine Type T8 TWIN-Y T8 TWIN T8-Classical
Mitsubishi Controller M80 M80 M80
Main Spindle
Capacity
Swing over Bed 500mm 500mm 500mm
Swing over cross slide 300mm 300mm 300mm
Max. Turning Dia. 300mm 300mm 300mm
Max. Bar Working Dia. 65mm 65mm 65mm
Max. Turning Length 150mm 150mm 200mm
Chuck Size KK6-185E60B KK6-185E60B KK6-185E60B
Main Spindle Nose A2-6 A2-6 A2-6
Main Spindle Bore 66.0mm 66mm 66.0mm
Max. RPM. 3000rpm (4000rpm) 3000rpm (4000rpm) 4000rpm
Sub- Spindle
Capacity
Max. Turning Dia. 200mm 200mm 100mm
Max. Bar Working Dia. 30mm 30mm ----
Max. Turning Length 150mm 150mm ----
Chuck Size KK5-173E42B KK5-173E42B ----
Sub- Spindle Nose A2-5 A2-5 ----
Sub- Spindle Bore 31mm 31mm ----
Max. RPM.
4000rpm (6000rpm)
4000rpm (6000rpm)
----
C Axis Least Command Unit 0.001° 0.001° 0.001°
Positioning Accuracy 0.02° 0.02° 0.02°
Tavel&Feed Slant Bed Degree 75° 75° 75°
X1/Z1 Axis Travel 150mm / 380mm 150mm / 380mm 150mm / 380mm
Y1 Axis Travel 80mm = ±40mm 80mm = ±40mm ----
X2/Y2/Z2 Axis Travel
--- / --- / 385mm
470mm / 380mm / 280mm
470mm / 380mm / 280mm
Axes Ball screw φ32mm-P10 φ32 Î P10 φ32 Î P10
Linear Guide Way 35mm 35mm 35mm
Y2 Axis Linear Guide Way ----- 25mm 25mm
Rapid Feed 30m/min 30m/min 30m/min
Repetition Accuracy 0.005mm 0.005mm 0.005mm

ATC System
Channel 1 BMT-55 Turret BMT-55 Turret BMT-55 Turret
No of Tools 12 12 12
Tool Holder £25mm / ○25mm / ○32mm £25mm /  ○ 25mm / ○ 32mm £25mm /  ○ 25mm / ○ 32mm
System2 ----- Gantry Gantry
No of Tools ---- OD*5 / ID*9 / LiveTool*12 OD*5 / ID*9 / LiveTool*12
B Axis (option accessory) ---- 360° 360°
Tool Holder
----
£20mm  ○ 20mm
£20mm  ○ 20mm
Motor System2 Servo Spindle 11kw Servo Spindle 11kw Servo Spindle 11kw
No of Tools Servo Spindle 3.7kw (5.5kw) Servo Spindle 3.7kw (5.5kw) Servo Spindle 3.7kw (5.5kw)
X1/Y1/Z1 Axis AC Servo 2.2 / 1.5 / 1.5kw AC Servo 2.2 / 1.5 / 1.5kw AC Servo 2.2 / 1.5 / 1.5kw
X2/Y2/Z2 Axis AC Servo --- / --- / 1.5kw AC Servo 1.5 / 1.5 / 1.5kw AC Servo 1.5 / 1.5 / 1.5kw
Hydraulic System Pump Spec/Capacity 1HP / 40L 1HP / 40L 1HP / 40L
Hydraulic Pressure/ Flow 30 kg/cm²  /  12L/min 30 kg/cm²  /  12L/min 30 kg/cm²  /  12L/min
Lubrication Pump Spce/Capacity 25W / 2L 25W / 2L 25W / 2L
Max. Pressure
15 kg/cm²
15 kg/cm² 15 kg/cm²
Coolant System Pump Spec TPH4T5K, 5Bar, 75 L/min TPH4T5K, 5Bar, 75 L/min TPH4T5K, 5Bar, 75 L/min
High Pressure Pump Spec SF-30C, 25Bar, 30L/min SF-30C, 25Bar, 30L/min SF-30C, 25Bar, 30L/min
Coolant Tank Capacity 240L 240L 240L
Machine Size Length without/with Chip Coveyor 2450mm/3350mm 2850mm/3550mm 2850mm/3550mm
Machine Width/Height 1650mm/1750mm 1950mm/1970mm 1950mm/1970mm
Machine Weight 5900 kg 6100 kg 6100 kg
(  ) Option
