Sliding Headstock Automation CNC lathe

MiniMax20i

Sliding Headstock Automation CNC lathe

This series offers the various combinations for the sliding head market. Precise, high-efficiency says it all!

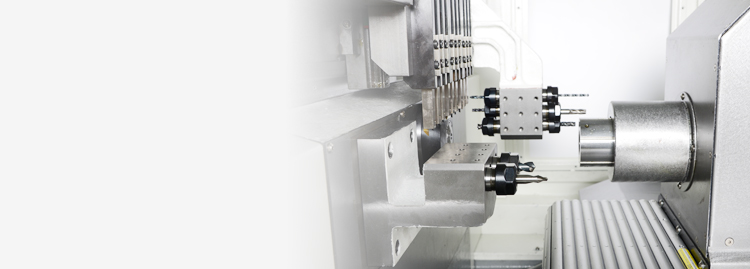

TOOLING SYSTEM

TOOLING SYSTEM

The tooling block consists of extensive 12mm or 16 mm turning and drilling tools. Maximum tooling capacity of 28 tools allows fast chip to chip times as there is very little movement from one tool to the next.

In addition, to meet the demand to produce complex parts, motorized tools are also provided as optional.

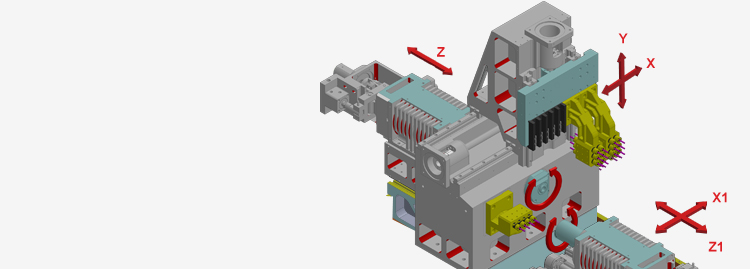

Axial view

Axial view

minimax20i

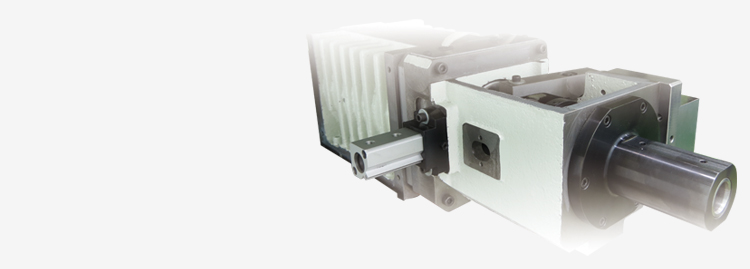

SPINDLE

SPINDLE

The cartridge type built-in spindle is the key components for precision machining. This reduces vibration, enables operation with high precision at high speed.

The design also allows the absence of drive traverse forces permitting extremely high accuracy on workpiece due to smooth, accurate spindle motion even at very low speed.

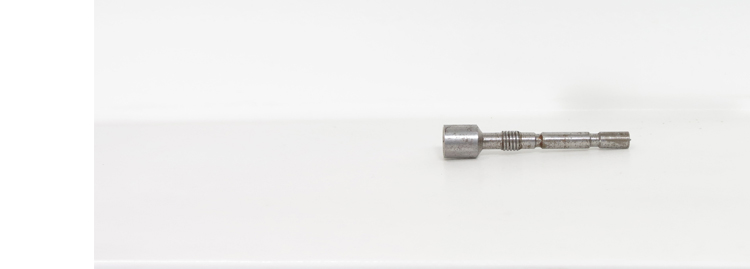

Workpiece

Workpiece

minimax20i

Specification



Mitsubishi Controller M70
Spindle Max. bar working dia 20mm Hydraulic
System
Hydraulic Motor 1HP
Max. part length
for front ejection
100mm
Collet Chuck Type SR-20R
Spindle Bore 22mm Max. Pressure 50kg/cm2
Spindle Speed Range 8000 rpm
Travel X axis 185mm
Y axis 315mm Tank Capacity 25L
Z axis 260mm
A.T.C System OD tools □12mm- 9 tools□12mm- 6 tools
□16mm- 7 tools□16mm- 5 tools
Lubrication Lubrication motor 25W
ID tools □12mm- 6 tools□12mm- 12tools
□16mm- 6 tools□16mm- 12 tools
Max. Pressure 15kg/cm2
Tool Shank Size 12mm / 16mm Tank Capacity 2 Liter
Boring Bar ER16 / Shaft 20mm Coolant
Sysstem
Coolant Motor Type 4PUW-1/4-200L
Mitsubishi
Motor
Spindle SJ-2B4203T Coolant Tank Capacity 55L
X/Y/Z axis X axis-HF104BS-A48
Y/Z axis -HF-104S-A48
Machine Size Length/Width/Height 2160*1270*1850 mm
Weight 2000kg
Optional
Sub Spindle Max. bar working dia 20mm Motorized Tool Numbers of Motorized Tools 6 tools or 8 tools
Max. protrusion length from back spindle face 30mm Speed 6000 rpm
Collet Chuck Type SR-20R Size ER16
Spindle Bore 22mm Max. Drilling Dia 8mm
Travel
X2=320mm / Z2=215mm

Spindle Speed Range 8000rpm Max. Tapping Capacity M6
OD tools 2 tools Motor HF-54T-A48
ID tools 2 tools C axis Position Accuracy 0.001°
Boring Bar ER16 / Shaft 20mm
Motor SJ-2B4203T
